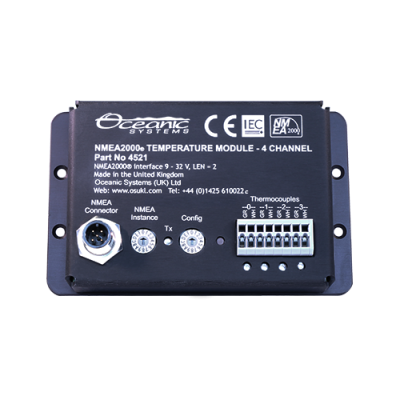

NMEA2000 4 Channel Temperature Module
Part Code: OS-N2K-TEMP-4C-K-4521
MF Code: 4521
£320.00 ex VAT
£384.00 inc VAT
In Stock
Oceanic Systems NMEA2000 4 Channel Temperature Module to suit K type temperature sensors (not supplied). Powered from NMEA backbone
Product Information
- 4 Thermocouple Type K input channels
- User configurable to temperature source for each channel
- Red warning LED if thermocouple damaged
- Blue LED to indicate temperature data transmission
- Boat Builder preferred WAGO Cage Clamp Terminals
- Panel or DIN rail mount robust metal case
- Low Cost
- NMEA2000® certified
The 4521 NMEA2000® 4 Channel Temperature Module is an important part of our Integrated Alarm, Display and Control System.
It monitors up to 4 type K thermocouples and reports their temperature over the NMEA2000® network such as:
- Rugged engine room probe (4525)
- Cabin air temperature sensor (4522)
- Liquid temperature probe (4523)
- Ring bolt temperature probe (4524)
The unit will also work with standard type k temperature sensors that are user supplied.
The 4521 has user-configurable temperature source information for each channel and a red warning LED that is lit if the sensor is damaged or improperly connected. The connections from the thermocouples to the unit are made by the boat builder preferred Wago cage clamp terminals. The unit can be either panel mounted or DIN-rail mounted using the clips provided and is certified to work with NMEA2000®.
Includes:
- Mounting clips
- User manual
