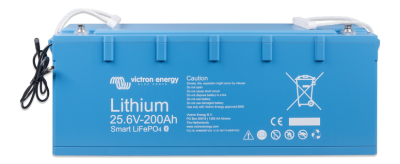

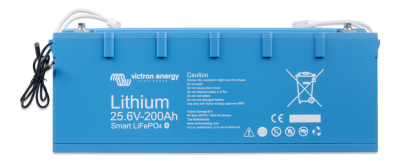

Victron Lithium Ion Battery - 24V 200ah Smart
Part Code: BAT-VIC-LI-24V-200AH-A-S
MF Code: BAT524120610
£1,614.37 ex VAT
£1,937.24 inc VAT
In Stock
Victron lithium ion energy battery.200ah 25.6v 39kg (BAT524120410/610) 5.120 Kwh nominal capacity - Cell Type: Lithium-iron-phosphate (LiFePO4 or LFP) - 237x650x163mm (HxWxD) - with Bluetooth connectitivityto the VE app ** REQUIRES VICTRON EXTERNAL BMS *
Product Information
Please note: 24 hours advanced notice is required for couriers to convey Lithium-Ion goods, in order to comply with UN3480, UN 3481 and UN3090 regulations. Please add 24 hours to your delivery e.t.a.
Lithium Battery Smart 12,8V & 25,6V
Victron Energy Lithium Battery Smart batteries are Lithium Iron Phosphate (LiFePO4) batteries and are available in 12.8 V or 25.6V in various capacities. They can be connected in series, parallel and series/parallel so that a battery bank can be built for system voltages of 12 V, 24 V or 48 V. The maximum number of batteries in one system is 20, which results in a maximum energy storage of 84 kWh in a 12 V system and up to 102 kWh in a 24V and 48V system.
A single LFP cell has a nominal voltage of 3.2V. A 12.8 V battery consists of 4 cells connected in series and a 25.6 V battery consists of 8 cells connected in series.
-With integrated cell balancing
-Can be parallel and series connected
-Bluetooth app available to monitor cell voltage and temperature
Requires one of these BMS-es:
-VE. Bus BMS / VE.Bus BMS V2 – recommended for systems with our inverter/chargers.
-smallBMS – recommended for use in small systems.
-Smart BMS 12/200 - recommended for use in Automotive and Marine systems having DC-loads and Alternators.
-Smart BMS CL 12/100 – recommended for use in Automotive and Marine systems having DC-loads and Alternators.
-Lynx Smart BMS - recommended for use in large systems.
Why lithium-iron-phosphate?
Rugged
A lead-acid battery will fail prematurely due to sulfation:
• If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
• If it is left partially charged or worse, fully discharged (yacht or mobile home during wintertime)
LFP is therefore the chemistry of choice for demanding applications.
Efficient
• In several applications (especially off-grid solar and/or wind), energy efficiency can be of crucial importance.
• The round-trip energy efficiency (discharge from 100 % to 0 % and back to 100 % charged) of the average lead-acid battery is 80 %
Size and weight
• Saves up to 70 % in space
• Saves up to 70 % in weight
Expensive?
• LFP batteries are expensive when compared to lead-acid. But in demanding applications, the high initial cost will be more than compensated by longer service life, superior reliability and excellent efficiency.
